# Engineered Wood Products - EWP

##### Engineered Wood Products versatility is the future of modern building

## Laminated Veneer Lumber - LVL

Each of the following sizes can be ordered in either H2S, H2 or H3 treated up to 12 metre lengths.Hyspan + | 90 x 35 |

Hyspan + | 120 x 35 |

Hyspan | 130 x 35 |

Hyspan + | 140 x 35 |

Hyspan | 150 x 35 |

Hyspan | 170 x 35 |

Hyspan+ | 190 x 35 |

Hyspan | 200 x 35 |

Hyspan + | 240 x 35 |

Hyspan+ | 290 x 35 |

Hyspan | 300 x 35 |

Hyspan + | 90 x 45 |

Hyspan + | 120 x 45 |

Hyspan | 130 x 45 |

Hyspan + | 140 x 45 |

Hyspan | 150 x 45 |

Hyspan | 170 x 45 |

Hyspan + | 190 x 45 |

Hyspan | 200 x 45 |

Hyspan | 240 x 45 |

Hyspan + | 240 x 45 |

Hyspan + | 290 x 45 |

Hyspan | 300 x 45 |

Hyspan | 360 x 45 |

Hyspan | 400 x 45 |

Hyspan | 90 x 63 |

Hyspan | 130 x 63 |

Hyspan | 150 x 63 |

Hyspan | 170 x 63 |

Hyspan | 200 x 63 |

Hyspan | 240 x 63 |

Hyspan | 300 x 63 |

hyspan | 360 x 63 |

Hyspan | 400 x 63 |

Hyspan | 450 x 63 |

Hyspan | 150 x 75 |

Hyspan | 300 x 75 |

Hyspan | 400 x 75 |

Hyspan | 525 x 75 |

## Laminated Glued Lumber - LGL

Laminated Glued Lumber is an alternative to LVL It has improved stability and nailing properties compared to LVL. It is treated to H3 as standard. Lengths up to 12 metres.

130 x 45 | 130 x 65 |

150 x 45 | 150 x 65 |

170 x 45 | 170 x 65 |

200 x 45 | 200 x 65 |

245 x 45 | 245 x 65 |

300 x 45 | 300 x 65 |

360 x 45 | 360 x 65 |

## 17C & 17S Laminated Beams

These glue laminated pine beams ( 'C' in 17C stands for 'Camber' ) or ( 'S' in 17S stands for 'Straight') are designed to finish under a load. Each of the following can be ordered in either, H2 or H3 treated up to 12 metre lengths.

130 x 65 | 130 x 85 |

165 x 65 | 165 x 85 |

195 x 65 | 195 x 85 |

230 x 65 | 230 x 85 |

260 x 65 | 260 x 85 |

295 x 65 | 295 x 85 |

330 x 65 | 330 x 85 |

360 x 65 | 360 x 85 |

395 x 65 | 395 x 85 |

425 x 65 | 425 x 85 |

460 x 65 | 460 x 85 |

495 x 65 | 495 x 85 |

525 x 65 | 525 x 85 |

560 x 65 | 560 x 85 |

## 18C

These glue laminated beams 18C ( 'C' in 18C stands for 'Camber' ) is often made from hardwood. It is commonly used as a replacement for 17C and is suitable for lintels or roof beams.

155 x 65 | 155 x 85 | 155 x 115 |

185 x 65 | 185 x 85 | 185 x 115 |

215 x 65 | 215 x 85 | 215 x 115 |

240 x 65 | 240 x 85 | 240 x 115 |

270 x 65 | 270 x 85 | 270 x 115 |

300 x 65 | 300 x 85 | 300 x 115 |

330 x 65 | 330 x 85 | 330 x 115 |

360 x 65 | 360 x 85 | 360 x 115 |

390 x 65 | 390 x 85 | 390 x 115 |

420 x 65 | 420 x 85 | 420 x 115 |

450 x 65 | 450 x 85 | 450 x 115 |

480 x 65 | 480 x 85 | 480 x 115 |

510 x 65 | 510 x 85 | 510 x 115 |

540 x 65 | 540 x 85 | 540 x 115 |

570 x 65 | 570 x 85 | 570 x 115 |

600 x 65 | 600 x 85 | 600 x 115 |

## 21C

These glue laminated beams 21C ( 'C' in 21C stands for 'Camber' ) is designed for high load and constructed from hardwood species, 21C are durable and termite resistant and are commonly used where aesthetic considerations are critical.

120x65 | 120x85 |

155x65 | 155x85 |

185 x 65 | 185 x 85 |

215 x 65 | 215 x 85 |

280 x 65 | 280 x 85 |

300 x 65 | 300 x 85 |

315 x 65 | 315 x 85 |

350 x 65 | 350 x 85 |

380 x 65 | 380 x 85 |

410 x 65 | 410 x 85 |

445 x 85 | |

475 x 85 | |

505 x 85 | |

535 x 85 | |

570 x 85 | |

600 x 85 |

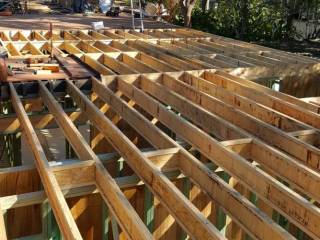

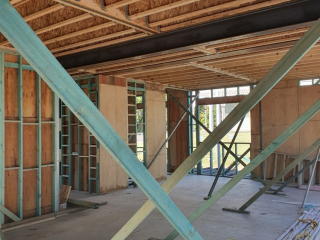

## Engineered Joists

### I-Beams, hyJOIST, SmartJoist

Photos courtesy of Brendan Murphy Constructions

Specifically designed for use as joists, these engineered beams consist of two LVL flanges with a structural plywood web. It is a cost-effective, light and strong solution for floor joists. These beams come either H2S or H2 treated.

## Web Stiffeners

Web Stiffeners are used to add additional strength to I-Beams in areas where they are under greater load. They come either H2S or H2 treated in the following sizes;

90 x 19 x 2.4m for 45mm I-Beam |

90 x 27 x 2.4m for 63mm I-Beam |

90 x 39 x 2.4m for 90mm I-Beam |

## Rimboard

Rimboard is used to enclose edges on areas using I-Beams. They come either H2S or H2 treated in the following sizes;

200 x 17 x 2.4m |

240 x 17 x 2.4m |

300 x 17 x 2.4m |

360 x 17 x 2.4m |
